Specifications:
Camera (700TVL):
Adjustable Camera Angle
120 Degree Super Vision Lense
Horizontal Resolution: 700TVL
System Committee: PAL/NTSC
Video Out: 1.0Vp-p/75
Power Input: DC 12V
TX5825 (FCC)/TX5824 (CE) Video Rx/Tx:
5.8G Wireless: Image transmission
TX5825(FCC) Bind B section: 4 channels
TX5824(CE) Bind B section: 8 channels
TX5825(FCC) output power: ≤200mW
TX5824(CE) output power: ≤25mW
Aircraft:
Remote Controller: DEVO 7
Receiver: DEVO-RX713
Main Controller: FCS-F210 (F3)
Transmitter: TX5825(FCC)/TX5824(CE)
OSD: F210 OSD
Brushless Motor: WK-WS-28-014A(CW/CCW)KV2500
Brushless ESC: F210(CW/CCW)
Battery: 14.8V 1300mAh 40C 4S Li-PO
Flight Time: 8-9mins
Working Environment: -10 to +40 degree
Main Rotor Diameter: 128mm / 5.04in
Wheelbase: 210mm / 8.27in
Size: 182 x 182 x 103mm / 7.17 x 7.17 x 4.06in
Package size: 455 x 140 x 325mm / 17.91 x 5.51 x 12.80in
Net weight: 1641g / 57.88oz
Package weight: 2434g / 85.86oz
Note: This product does not suitable for children under 14 years old.
Package Includes:

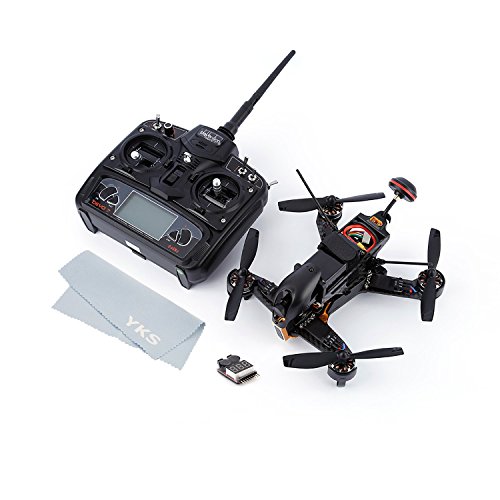

1 x Walkera F210 Racing Quadcopter
1 x 700TVL Camera
1 x OSD
1 x DEVO 7 Transmitter
1 x Battery
1 x Battery Charger
1 x USB Cable
1 x Manual
1 x YKS Battery Checker
