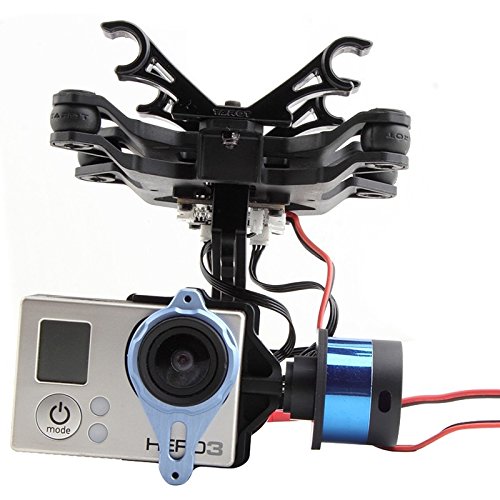

TL68A00 T-2D 2-Axis Brushless Gimbal Camera Mount FPV with Gyro / AV Cable for Gopro Hero3 / DJI Phantom X525 Quadcopter

About the product
1. Support GoPro Hero3 video auxiliary output
2. Support the supply voltage polarity protection and voltage compensation
3. Support the motor drive end short-circuit protection
4. Support custom initial pitch angle
5. Support sensitivity parameter adjustment and software 3D pose show
6. Support rocker rate mode and position mode
7. Support receiver: conventional receiver, S-BUS receiver, DSM2/DSMJ/DSMX receiver
8. Support remote devices: PPM/PCM/2.4G
9. For shooting equipment: GoPro Hero 3

Specifications
1. Working voltage: DC 7.4V – 14.8V (Recommended 12V, lithium battery)
2. Working current: 200mA-500mA (power supply voltage and the motor related)
3. Working environment temperature: -15 – 65 Celsius Degree
4. Processor: Dual 32-bit high-speed ARM core processor
5. Sensor: Three rotor MEMS gyroscope rotor MEMS accelerometers
6. Maximum angular rate: 2000 degree / sec
7. Maximum acceleration: 16g
8. Control frequency: 2000Hz
9. Motor drive frequency: 20KHz (no noise smoothing driven)
10. Control accuracy: 0.1 degree
11. Control angle range: -45 – 45 degree (roll), -135 – 90 degree (tilt)
12. Pose solver algorithms: PTZ dedicated brushless motor decoupled EKF algorithm

Product Features

• Quality is 100% Brand New Guaranteed
