Andoer Original DJI NAZA V2 Flight Controller w/ GPS & PMU V2 for Multirotor Quadcopter

Original DJI NAZA V2 Flight Controller w/ GPS & PMU V2 for Multirotor Quadcopter

Flight Performance:
Hovering Accuracy(GPS Mode):
Vertical:±0.8m
Horizontal:±2.5m
Max Yaw Angular Velocity: 200°/s
Max Tilt Angle: 35°
Ascent / Descent: 6m/s，4.5m/s

Specifications:
Working Voltage Range:
MC:4.8V~5.5V
VU Input: 7.4V ~ 26.0 V(recommend 2S ~ 6S LiPo)
Output(V-SEN port red wire): 3A@5V (burst current:7.5A)
Power Consumption:
MAX: 1.5W(0.3A@5V)
Normal:0.6W(0.12A@5V)
Supported ESC output: 400Hz refresh frequency
Recommended Transmitter: PCM or 2.4GHz with minimum 4 channels
Operating Temperature: -10°C ~ 50°C
Assistant Software System Requirement: Windows XP sp3 / Windows 7 / Windows 8
Notices: For safety reason, do not use power battery during firmware upgrade.
Package Size: 13 * 9 * 8cm / 5.1 * 3.5 * 3.1in
Package Weight: 287g / 10.1oz

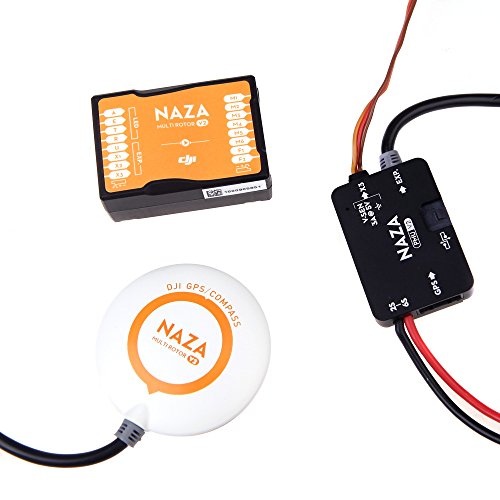

Package list:
1 * DJI NAZA V2 Flight Controller
1 * GPS/Compass Module
1 * GPS Holder
1 * NAZA PMU V2
1 * Remote LED
1 * USB Connector Wire
8 * Connetor Wires

Product Features

• The Naza-M V2 provides better flight performance.
• The innovative All-in-one design simplifies installation and saves space and weight.
• 9 types Multirotor Configurations Supported
• Naza-M V2, with PMU V2 module with CAN BUS port, could support iOSD, GoPro gimbal, Bluetooth LED module and so on.
• The NAZA-M system communicates with other DJI products (e.g. H3-2D gimbal, BTU module, iOSD mini and iOSD Mark II) via the CAN-Bus port of the NAZA PMU V2. You can plug new DJI products into any spare CAN-Bus port, since CAN-Bus ports on NAZA-M
